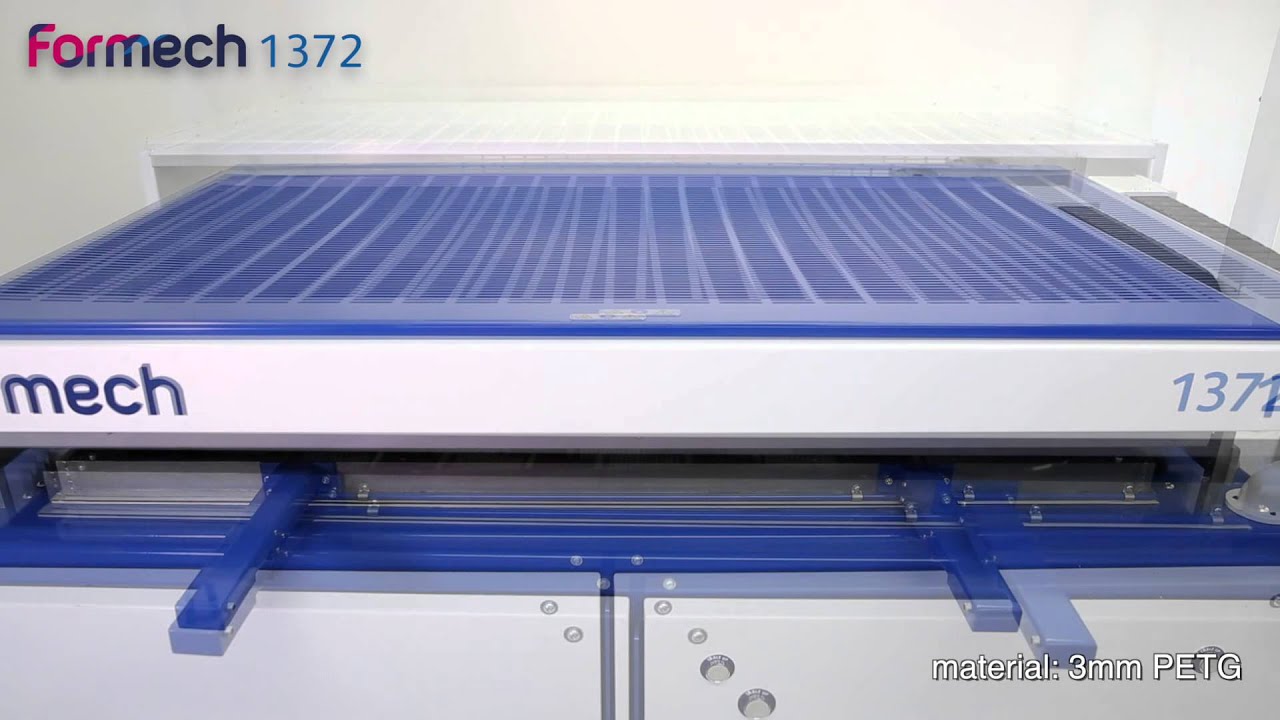

Currently, we are offering our own demonstration machine, the Formech 1372. This large-format semi-automatic vacuum forming machine can form various thermoplastic with dimensions of 1330 x 620 x 420 mm.
The machine comes with several options, including three reducing frames in different sizes, a twin-fan (550 W) cool system reducing frames accommodate the following sheet sizes:
The supplied reducing frames accommodate the following sheet sizes:
SA – Semi-Automatic Package
The semi-automatic upgrade, including electric heating drive and pneumatic trigger clamps, allows the entire workflow to be automated. All cycle settings can be programmed, includig heating temperature, heating times, heating zones, vacuum timing, cooling time, and delays. This ensures a consistent production line.
Due to its large format and the longest axis of 1330 mm, this machine is very popular among designers in film, TV, and theater productions, universities, automotive, R&D, props, hobby product manufacturing, and the concrete industry for molds. The 1372 offers a wide range of options, including semi-automation of the production cycle, effectively turning it into an automatic production machine. In addition to the automation package, upgrade are available for heating elements, vacuum receiver tank, and various cooling systems. This makes the machine suitable as an advanced production unit for technical plastics.
The new price of this machine, including delivery and installation, is €61.450 excl. VAT. We are now offering it for €46.950, including delivery, installation, and training, excl. VAT.
Specifications:
Forming Area: 1330 x 620 mm
Sheet size: 1372 x 660 mm
Maximum Depth: 420 mm
Maximum Material Thickness: 6 mm
Heating Zones: 15
Heater Type: Quartz
Width: 2144 mm
Height: 1320 mm
Depth: 2099 mm
Weight: 600Kg
Single Phase Power Requirements: Not applicable
Europe – 3 Phase Power Requirements: 380-415 / 40A
United States – 3 Phase Power Requirements: 208-220 V / 63A
Power Consumption: 17.0kW
External Air Supply: 80 PSI / 5 bar
Type of Vacuum Forming Machine: Large Format
Product type: Vacuum Forming Machine
7-inch color-HMI / PLC with Formech-Cycle View (FCV)
Wago control system with 7-inch touchscreen, real-time adjustments, 1% increment control, Formech cycle view, and 40 pre-set program memories.
Quartz Heating with Variable Standby
Quartz haeters provide fast response and high efficiency, resulting in time and energy savings
15 Independently Controlled Heating Zones
Fifteen heating zones and quartz heaters ensure rapid heat-up and a wider control range for complex shapes and materials
Powertable
Lifts the tool table quickly and precisely, enabling effortless operation even with heavy tooling. Dual controls prevent accidental activation.
Adjustable Table Height
Reduces table travel when using shallow tools, shortening the cycle time.
Pre-Stretch
Allows air to be pumped into the heated sheet, forming an air bubble to prevint thinning when forming deeper tools.
Auto-Level
Prevents sagging of the material during the heating cycle and ensures an even distance between the haeter and the sheet, with an audible signal when the sheet is ready to form.
Vacuum and Pressure Gauges
Visual indication of consistent vacuum and pressure applied (in Hg/bar)
Dry Rotary Vane Pump 25 m³/h
Oil-free and requires minimal maintenance
Reducing Frame
Reduces the forming area to use smaller sheets and minimize waste. Available in standard or custom sizes.
Twin Cooling Fan System
Bovenloopportaal en dubbele 550W-ventilatoren om gevormd materiaal te koelen en cyclustijden te verkorten.
Vacuüm stroomregelaar
Regelt nauwkeurig het vacuümdebiet wanneer een grotere mate van controle vereist is bij veeleisende toepassingen.
Pneumatische trigger-klemmen
Pneumatisch aangedreven klemsysteem dat krachtige en moeiteloze bediening biedt.
SA – Semiautomatisch pakket
Semiautomatische upgrade inclusief aandrijving van elektrische verwarming en pneumatische trigger klemmen
Original price was: €61.450,00.€46.950,00Current price is: €46.950,00. excl. VAT
