Formech 450 DT Tabetop vacuum forming machine

Formech 450 DT is the middle vacuum forming machine from the Formech desktop series. The Formech 450 DT is the smallest desktop machine where the heating zones can be set with the latest technology. The 450 DT has a touchscreen PLC screen with how resolution for precise and easy operation. This PLC touchscreen makes it possible to call up 20 for programmed settings easily.

The Formech 450 DT has a molding area of 430 x 280 mm and a height of 160 mm. the four adjustable heating zones and Quartz elements ensures a quick response and many possibilities. Due to the release button on the machine, both the model and the mold can cool and unload via air.

The vacuum form machine Formech 450 DT is widely used for industries and applications such as chocolate (molds), displays, plastic parts, eductation (different training) and prototyping and production of small plastic parts.


Quartz heating elements
Quartz heating elements have the advantage of a fast response and high efficiency, resulting in time and energy savings.

Safety lock
Mechanical locking prevents the table from being raised while the heating is in the forward position. This also applies to all desktop machines.

Vacuum & Discharge
After the molded part has cooled, air is forced between the mold and the plate to assist in releasing it.

Vacuum meter
A visual indication of consistent vacuum pressure that is applied. (Pressure is measured in Hg / bar).

Digital Timer
A Digital Timer with a programmable countdown and audible alarm that helps to achieve consistent cycle times.


Reducing Window
Reduces the molding area to use smaller sheets of material and minimize wastage. We offer this in standard or custom format.

A special white trolley with blocking wheels and handy storage space for plastic film.

Starter package of plastic
Assortment of material (HIPS, ABS, PETG) cut to size to fit your Formech vacuum forming machine.

Spare Parts
A set of consumables that usually contains the following things: seals, elements, filter, fuses, tension clamps.


Kennis centrum:

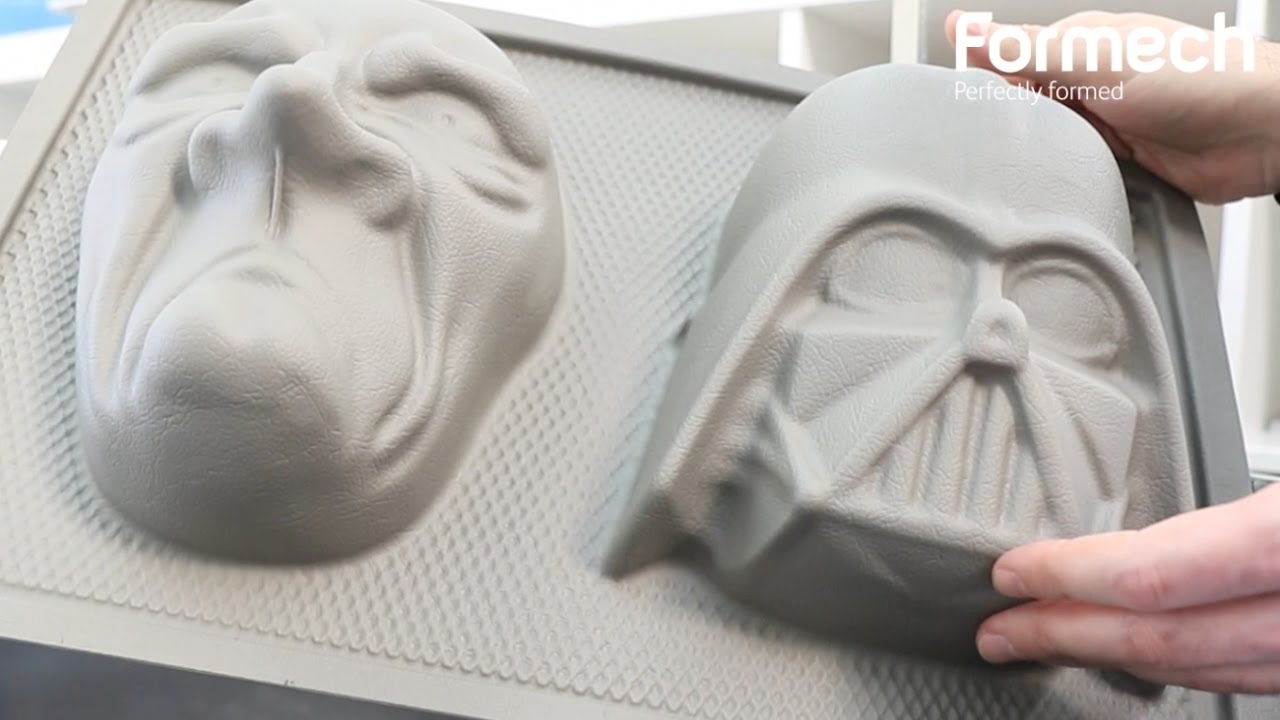

Formech NEW 450DT - Desktop Vacuum Forming Machine
