Formech HD1000 c-T – large format vacuum forming machine

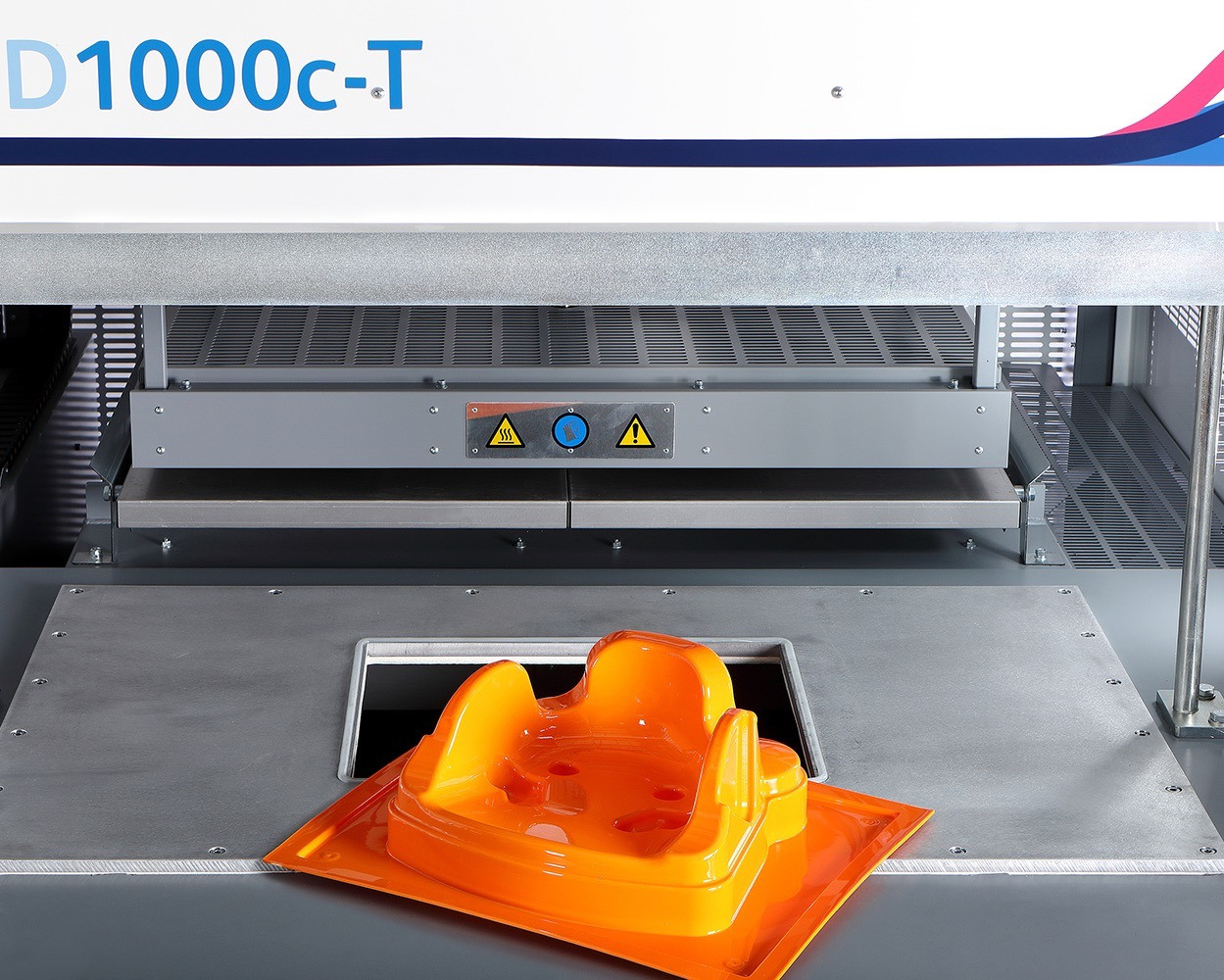

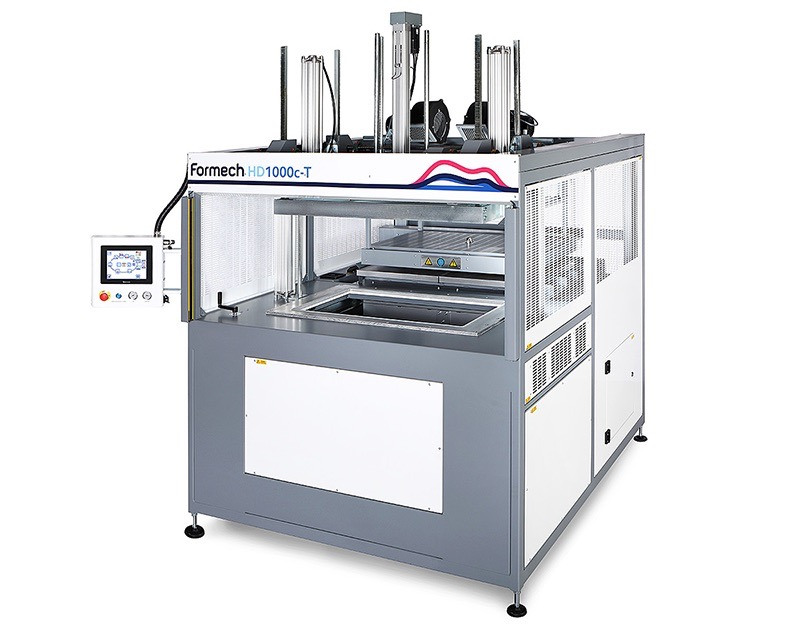

The Formech HD1000 c-T vacuum forming machine features centralized temperature control. Thanks to advanced top and bottom heating, the warming-up time is significantly reduced, and the forming capability is maximized. This allows for more products to be formed in less time. Specifically designed for industrial applications and production environments where speeds and efficiency are essential, the HD1000 c-T provides everything needed to elevate productivity to the next level.

Formech HD1000 c-T Vacuum Forming Machine
Forming Area: 960 x 560 mm
Sheet Size: 1000 x 600 mm
Maximum Draw Depth: 500 mm
Maximum Material Thickness: 10 mm
Heating Zones: 16 top / 16 bottom (32 total) (independently controllable)
Type of Heaters: Quartz
Width: 2315 mm
Height: 2620 mm
Depth: 2599 mm
Weight: 2200 kg
Europe – 3-Phase Power Requirements: 380-415V / 35A
United States – 3-Phase Power Requirements: 208-240V / 60A
Power Consumption: 21.5 kW
Air Requirements: 87 PSI / 6 Bar
Control Interface: 9.7″ color HMI
Type of Vacuum Pump: Oil-filled rotary vane pump
Pump Capacity (SCFM @ 0 in. / 60Hz): 15.9
Pump Capacity (m³/h @ 0 mbar / 50Hz): 23.5
Mold Release Method: External air supply
Type of Vacuum Forming Machine: Semi-automatic and fully automatic
Product Type: Vacuum Forming Machine

Features of the HD1000c-T

Quartz Heating with Variable Standby
Quartz heaters offer the advantage of fast response and high efficiency, resulting in time and energy savings.

Vacuum and Pressure Gauges
Visual indication of the applied vacuum andd pressure (display in Hg / bar).

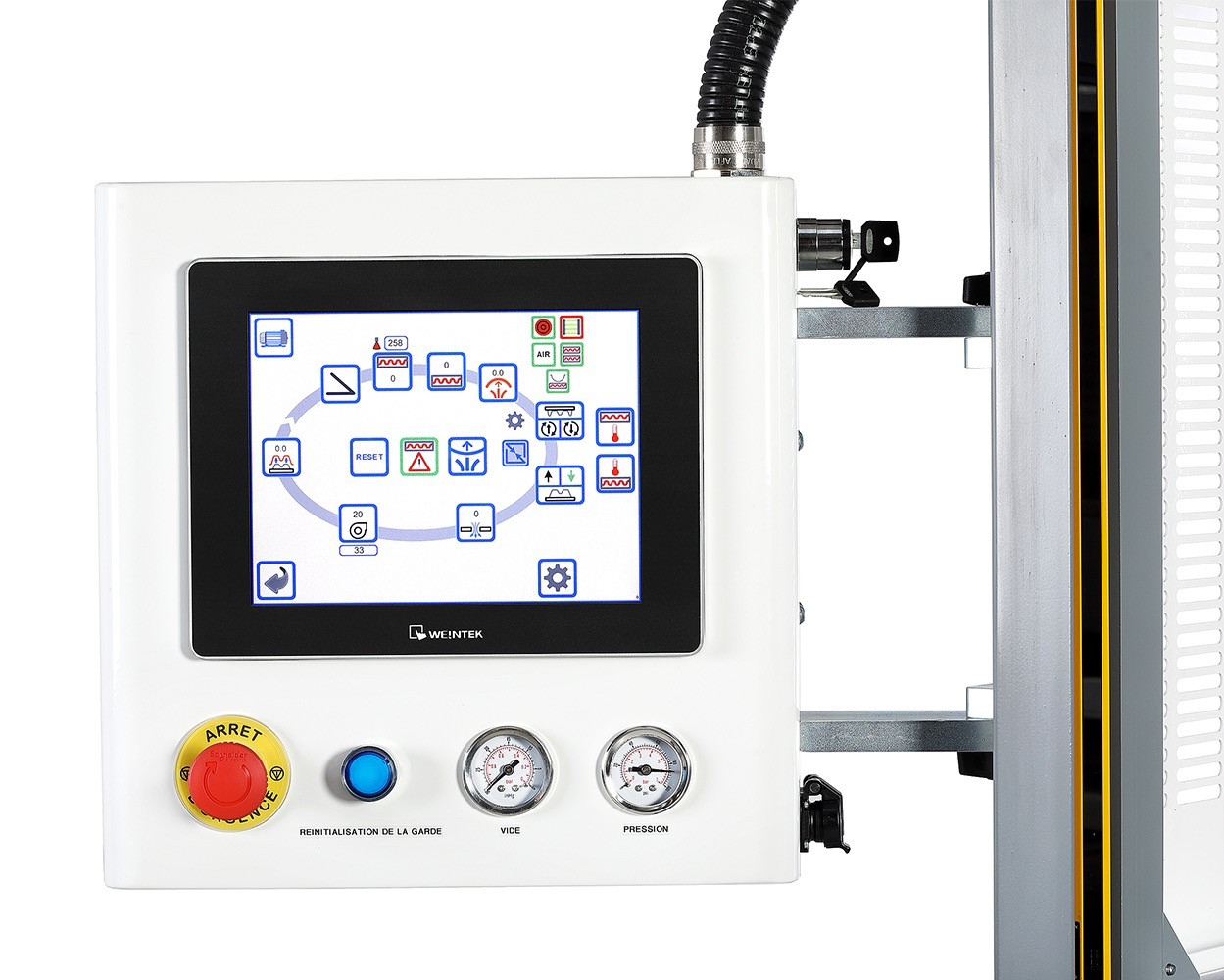

FCV (Formech Cycle View) with 40 Progam Memories
The Machine cycle status is visible at a glance. ALl parameters can be adjusted in real-time without interrupting the ongoing cycle.

Pre-stretch
Pre-stretch allows air to be pumpe into the stretched sheet material, creating an air bubble that prevents the material from thinning when using deep molds.

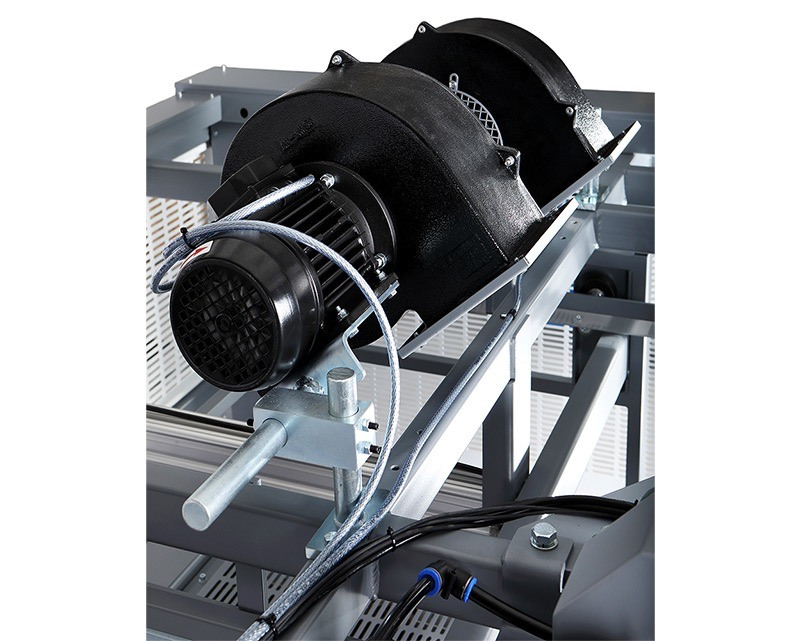

Twin Cooling Fans
Two cooling fans provide rapid cooling of the formed material, thereby reducing the cycle time.

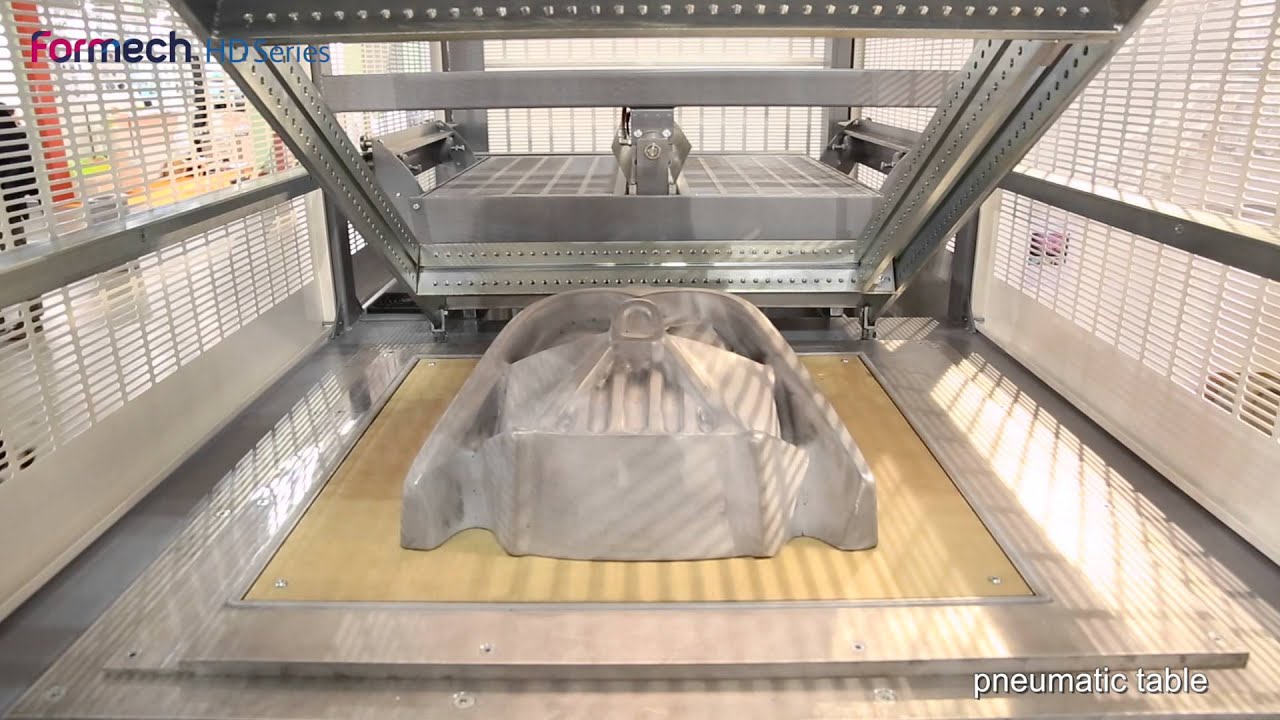

Pneumatic Table with Speed Controller
The tooling table is raisedd quickly and precisely, enabling effortless operation even with heavy molds.

Pneumatic Drive for the Heating
Heavy-duty, pneumatically driven movement of the heater for fasst and precise positioning; the built-in braking system prevents damage to the heating elements.

Multi-user PIN Aces Control
The supervisor can set and manage acces rights for different operators.

Safety Light Curtain
Protects the user from injury by immediately stopping all mechanical actions when the light curtain is interrupted.

Digitally Controlled Flow Control Valve – Vacuum
Regulated the vacuum flow via the HMI interface. The digital valve allows precise and reproducible settings, which are automatically saved within the program, unlike manual control knobs.

Digitally Controlled Flow Control Valve – Pre-stretch & Auto Level

Oil-filled Rotary Vane Pumip 18 m³/h
Reliable vacuum pump for consistent performance in industrial applications.

Vacuum and Release
After the formed part has cooled, air is blown between the mold and the sheet material to facilitate release.

PLC Control with 10″ High-Resolution Touchscreen
Advanced control through an intuitive color touchscreen for easy and precise operation.

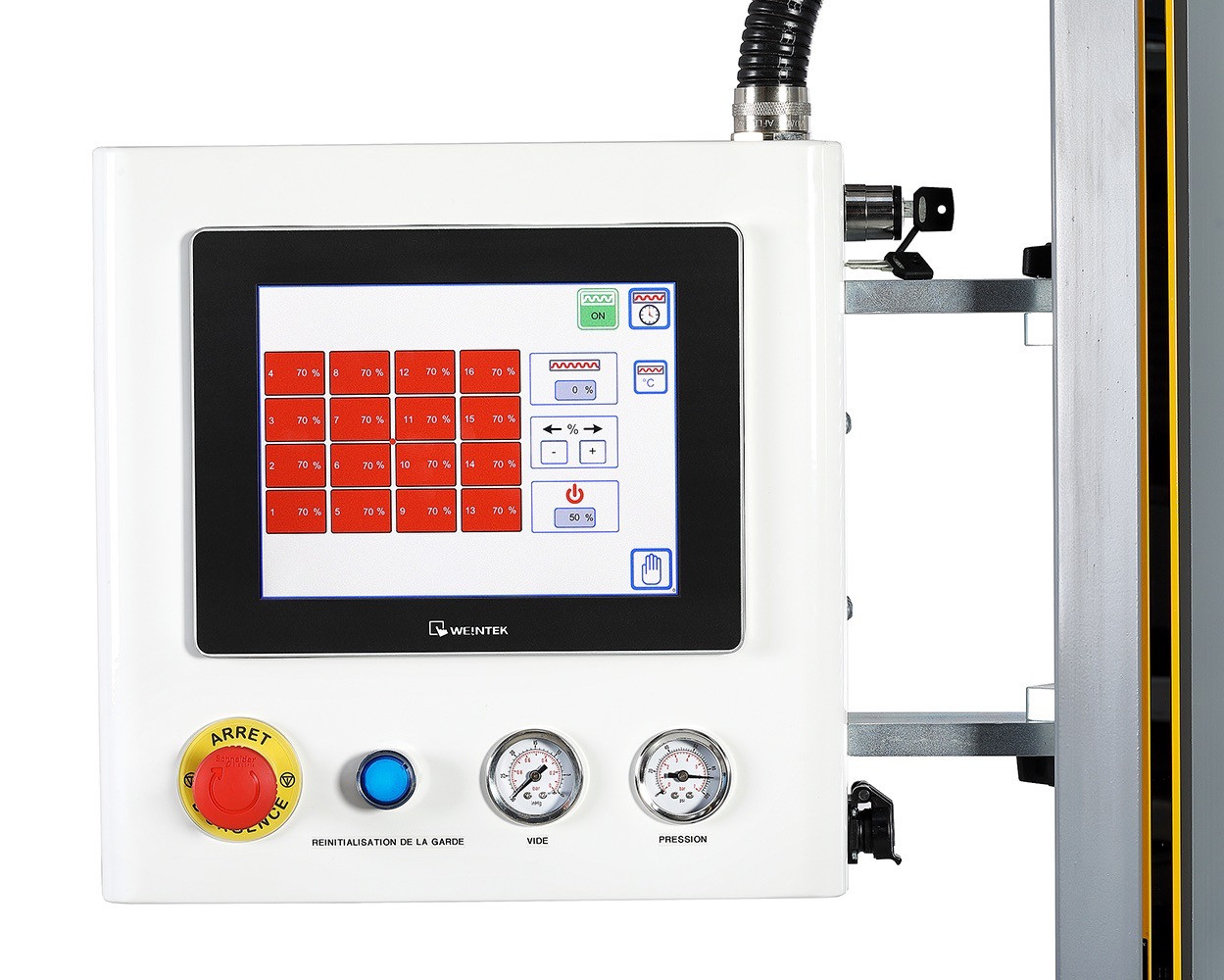

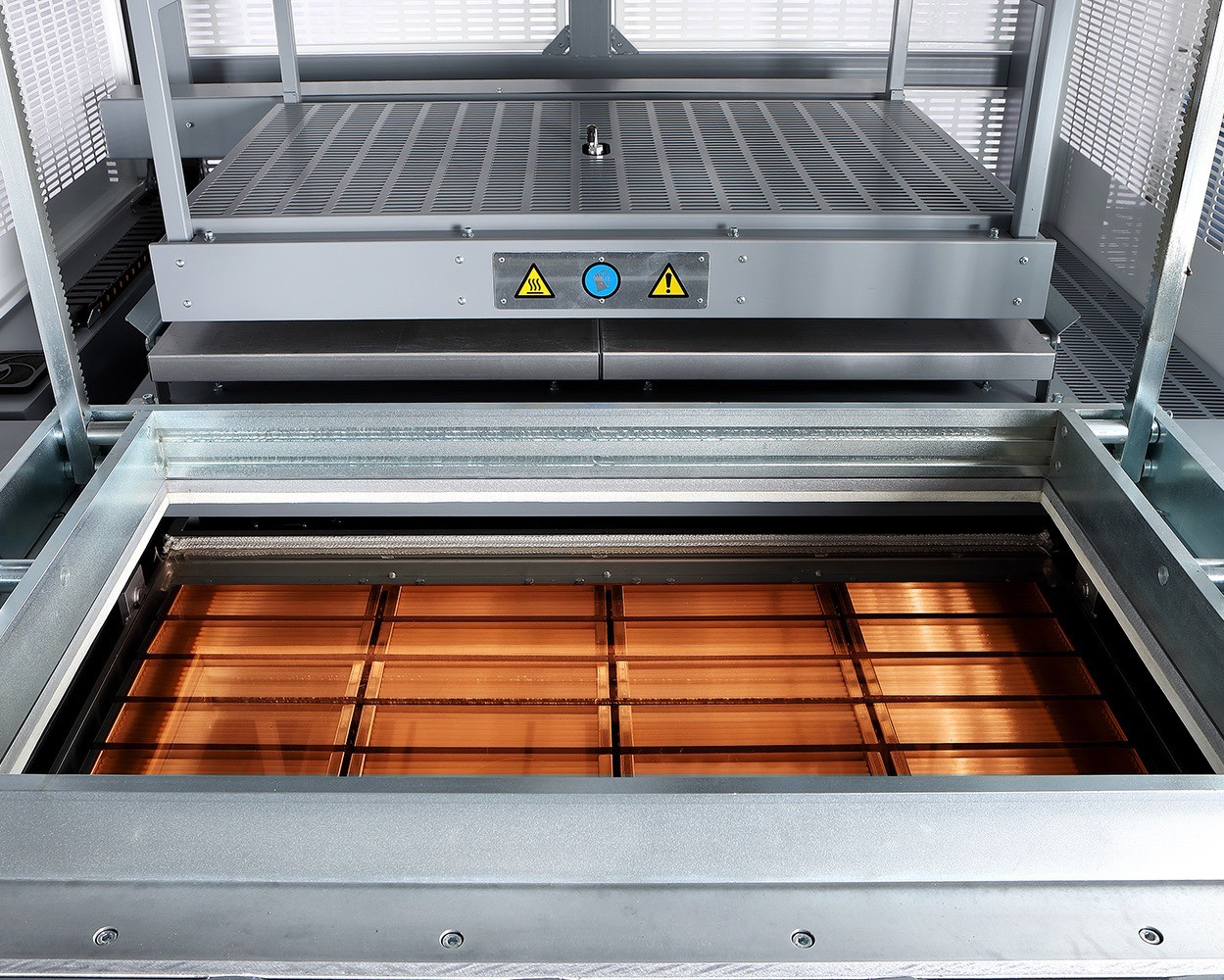

Double Heating with Independently Controllable Heating Zones (16 Top + 16 Bottom)
Provides fast heat response and offers a wider range of control to form challenging shapes and materials.

Auto-level
Prevents sagging of the material during the heating cycle and maintains a constant distance between the heater and the sheet, while giving an audible indication that the material is ready to be formed.

Vacuum Reciever Tank
Storage tank for vacuum that proides instant available vacuum for faster cycle times and demanding materials.

Heating Pyrometer
Sensor that provides accurate temperature feedback of the sheet material and automatically initiates release once the target temperature is reaced.

Pneumatically Driven Clamping System (Vertical)
Pneumatically driven clamping system that enables powerful and effortless operations.

Safety Interlock Override for Heating/Table Lock
Ability to bypass safety interlocks of the heating and table when necessarry for special applications or maintenance.

Digitally Controlled Flow Control Valce – Pneumatic Table
Precise digital control of the table’s speed and movement via the HMI

Digitally Controlled Flow Control Valve – Release
Digital control of the airflow for releasing the formed part, ensuring consistent and controlled results.

Options for the HD1000c-T

Reduction Frames for the Formech HD1000c-T (Custom-made)
Reduces the forming area to use smaller sheets of material and minimize material waste. Contact us for a quote.

Spray Mist for Formech HD1000c-T
Spray mist is combined with the cooling fan system (if present) to shorten the cooling time.

Cooling Pyrometer for Formech HD1000c-T
Sensor that provides accurate temperature feedback of the sheet material and automatically initiates release once the target temperature is reached.

Servo Plug-Assist for Formech HD1000c-T
Instead of pneumatics, the servo plug-assist offers variable positioning and damping of the plug movement for precise control.

Fa Remote Connectivity (FRC)
Provides the operator with the ability to remotely acces the machine’s control system and download programs.

Formech RP1200 Roller Press

Formech RP700 Roller Press

Plug-Assist for Formech HD1000c-T (Including Digitally Controlled Flow Control Valve)
Pneumatically driven plug-assist that pushes the heated material into the mold cavities to increase material thickness at the bottom of the cavities.

Cooling Plate for Formech HD1000c-T
A water-cooled plate tat directly cools and regulates the temperature of aluminimum tooling for consistent and faster cycle times. Note: this option requires an external chiller.

Heating Pyrometer for Formech HD1000c-T (Bottom Heating)
Sensor that provides accurate temperature feedback of the sheet material and automatically initiates release once the target temperature is reached.

Clear Material Detection for Formech HD1000c-T
A more sensitive sensor option, especially recommended for users forming thins, transparent materials.

Spare Parts Kit for Formech HD1000c-T
A set of consumables, including:
