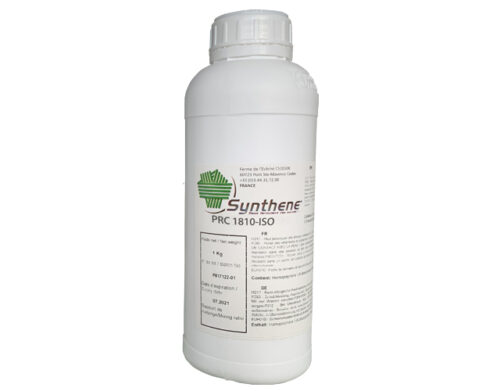

Synthene PRC1810 – High-Performance Polyurethane Casting Resin for Industrial Precision
The Synthene PRC1810 is a premium, two-component polyurethane casting resin designed to produce strong, wear-resistant, and dimensionally stable parts. This resin combines excellent mechanical properties with reliable processing, making it ideal for professional users in industries such as industrial manufacturing, model making, technical prototyping, and small-scale production.
✔ High Mechanical Strength
Excellent compressive and tensile strength for functional parts that are truly load-bearing.
✔ Wear-Resistant and Durable
Resistant to mechanical stress and long-term use.
✔ Dimensional Accuracy and Reproducibility
Minimal shrinkage ensures precise reproductions, even for complex geometries.
✔ Good Flow Properties
Low-viscosity system that captures fine details perfectly in silicone molds.
✔ Reliable Processing
Predictable pot life and curing – suitable for manual casting as well as vacuum or pressure casting.
Technical cast parts
Industrial components
Wear-resistant protective parts
Prototypes and functional models
Molds and tooling applications
Thanks to the combination of strength and detail fidelity, PRC1810 is particularly suited for applications where both aesthetics and functionality are important.
Synthene PRC1810 is a two-component system (A+B) that is easy to mix according to the prescribed ratio. For optimal results, we recommend:
Accurately weighing both components
Mixing without introducing air
Processing within the specified pot life
Optional vacuum degassing for critical applications
Full technical specifications are available in the datasheet.
Custom solutions from thin PRC1810 to solid CRISTAL HRI 35
Outstanding combination of thermal, mechanical, and optical properties for projects such as automotive headlights or perfume bottles
Extreme UV resistance, even in outdoor conditions
Adjustable light diffusion using the light-dispersing additive PP0420 for lighting design
Exceptional UV stability for demanding indoor and outdoor projects
High heat deflection temperature (84 °C) and superior impact resistance (84 kJ·m⁻²)
Optimized balance between demold time and mechanical properties
Flame-retardant according to EN 60695-11-10A (HB)
This polyurethane casting resin is developed for professional users who demand high quality, reproducibility, and reliability. Perfect for technical production environments where precision and durability are key.
Available on request: Box of 6× 1.67 kg sets = 10.02 kg
Hardness (Shore D): 85
Mixing ratio: 56:100
Color: Transparent
Pot life (min): 9
Curing time: 120 min (demold) / 7 days (100%)
Viscosity (mPa·s): 450
Density: 1.1 g/cm³
Elongation at break: 6.5%
Tensile modulus (MPa): 2350
Tensile strength (MPa): 65
Impact resistance (kJ·m⁻²): 84
Heat deflection temperature (°C): 84
Linear shrinkage at 23°C (mm/m): 6
Maximum casting/wall thickness: ~10 mm
Silicone mold lifespan: ~20 castings per mold
Compliance:
Online packaging: 1.67 kg (1.070 kg Iso + 0.600 kg Polyol)
REACH: EC Regulation 1907/2006
RoHS: EU Directives 2011/65, 2015/863 & 2017/2102
End-of-Life Vehicle Directive: 2000/53/EC
WEEE Directive: 2002/96/EC
Cosmetic products directive: 2000/11/EC
Recycling compliance: IMDS (mdsystem.com)
Product type: Polyurethane casting plastic
Flame retardant: EN 60695-11-10A (HB)
€121,85 excl. VAT
