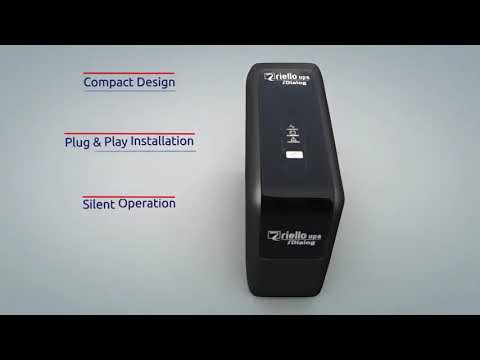

Riello UPS IDG Serie, iDialog 400 – 1600 VA

The Riello UPS iDialog is a compact and lightweight UPS system upright tower system that can be easily placed on the floor, on a desk or in a similar environment. The Riello iDialog is therefore simply plug-and-play with no additional installation required. The Riellop UPS iDialog is a quiet design without a fan, which makes the living climate with these ups excellent. No unwanted distraction from work or pleasure due to fan noise thanks to this design which ensures quiet operation. The iDialog is capable of up to 99% operational efficiency and includes a convenient shutdown button to minimize energy consumption during periods of extended inactivity.

It is fully compatible with advanced PowerShield3 communication software, which allows connected equipment to shut down safely.

Simple plug-and-play installation
small and compact
Up to 99% efficiency
auto restart
Quiet due to fanless design

Available as a model:

IDG 400 – 400 VA / 240 W.
IDG 600 – 600 VA / 360 W.
IDG 800 – 800 VA / 480 W.
IDG 1200 – 1200 VA / 720 W.
IDG 1600 – 1600 VA / 960 W

IDG 400

INPUT
Rated power :400 VA
Voltage: 220 / 230 / 240 V
Voltage tolerance: 230 V (+20/-25%)
Frequency: 50 / 60 Hz with automatic selection

OUTPUT and INVERTER OUTPUT
Rated power: 400 VA
Active power: 240 W
Number phases: 1
Wave form on battery: Pseudo Sinusoidal
Frequency on battery operation: 50 or 60 Hz (±1%)
Standards European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility — Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant
Weight: 3.2 kg
Dimensions: (h w d) 192x90x232 mm

IDG 600

INPUT
Rated power :600 VA
Voltage: 220 / 230 / 240 V
Voltage tolerance: 230 V (+20/-25%)
Frequency: 50 / 60 Hz with automatic selection

OUTPUT and INVERTER OUTPUT
Rated power: 600 VA
Active power: 360 W
Number phases: 1
Wave form on battery: Pseudo Sinusoidal
Frequency on battery operation: 50 or 60 Hz (±1%)
Standards European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility — Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant
Weight: 3.2 kg
Dimensions: (h w d) 192x90x232 mm

IDG 800

INPUT
Rated power :800 VA
Voltage: 220 / 230 / 240 V
Voltage tolerance: 230 V (+20/-25%)
Frequency: 50 / 60 Hz with automatic selection

OUTPUT and INVERTER OUTPUT
Rated power: 800 VA
Active power: 480 W
Number phases: 1
Wave form on battery: Pseudo Sinusoidal
Frequency on battery operation: 50 or 60 Hz (±1%)
Standards European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility — Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant
Weight: 3.4 kg
Dimensions: (h w d) 192 x 90 x 232 mm

IDG 1200

INPUT
Rated power :1200 VA
Voltage: 220 / 230 / 240 V
Voltage tolerance: 230 V (+20/-25%)
Frequency: 50 / 60 Hz with automatic selection

OUTPUT and INVERTER OUTPUT
Rated power: 1200 VA
Active power: 720 W
Number phases: 1
Wave form on battery: Pseudo Sinusoidal
Frequency on battery operation: 50 or 60 Hz (±1%)
Standards European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility — Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant
Weight: 6,6 kg
Dimensions: (h w d) 270 x 93 x 310 mm

IDG 1600

INPUT
Rated power :1600 VA
Voltage: 220 / 230 / 240 V
Voltage tolerance: 230 V (+20/-25%)
Frequency: 50 / 60 Hz with automatic selection

OUTPUT and INVERTER OUTPUT
Rated power: 1200 VA
Active power: 960 W
Number phases: 1
Wave form on battery: Pseudo Sinusoidal
Frequency on battery operation: 50 or 60 Hz (±1%)
Standards European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility — Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant
Weight: 6,9 kg
Dimensions: (h w d) 270 x 93 x 310 mm
